GatorTail
The GTZ 40 completes our already impressive motor lineup! Experience increased performance and industry leading reliability. It's GatorTail's most powerful and robust motor yet. See what a powerful, commercial grade mud motor can do for you.
GTZ 40 EFI
$12,500
The GTZ brings superior power and industry leading reliability. Equipped with our custom designed ZF transmission. This design is our most robust and reliable motor & transmission combination yet. It combines the ergonomic handle, high heat reverse cover, and three-piece lower unit of the GTZ with a new camshaft, piston and connecting rod design for more power and durability, a new muffler for increased airflow, a new cylinder head profile for improved cooling, and a new EFI calibration for increased power and performance.

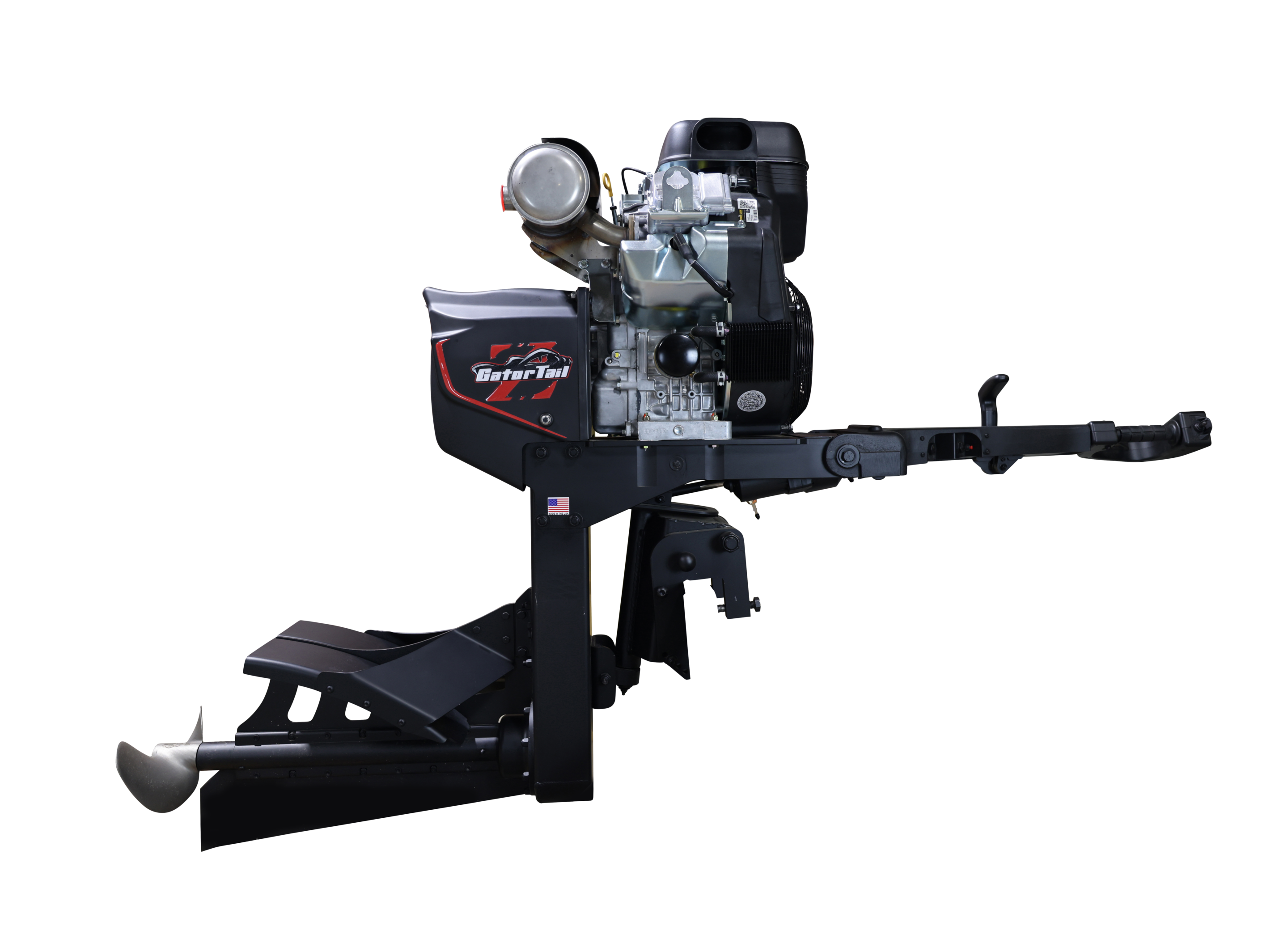

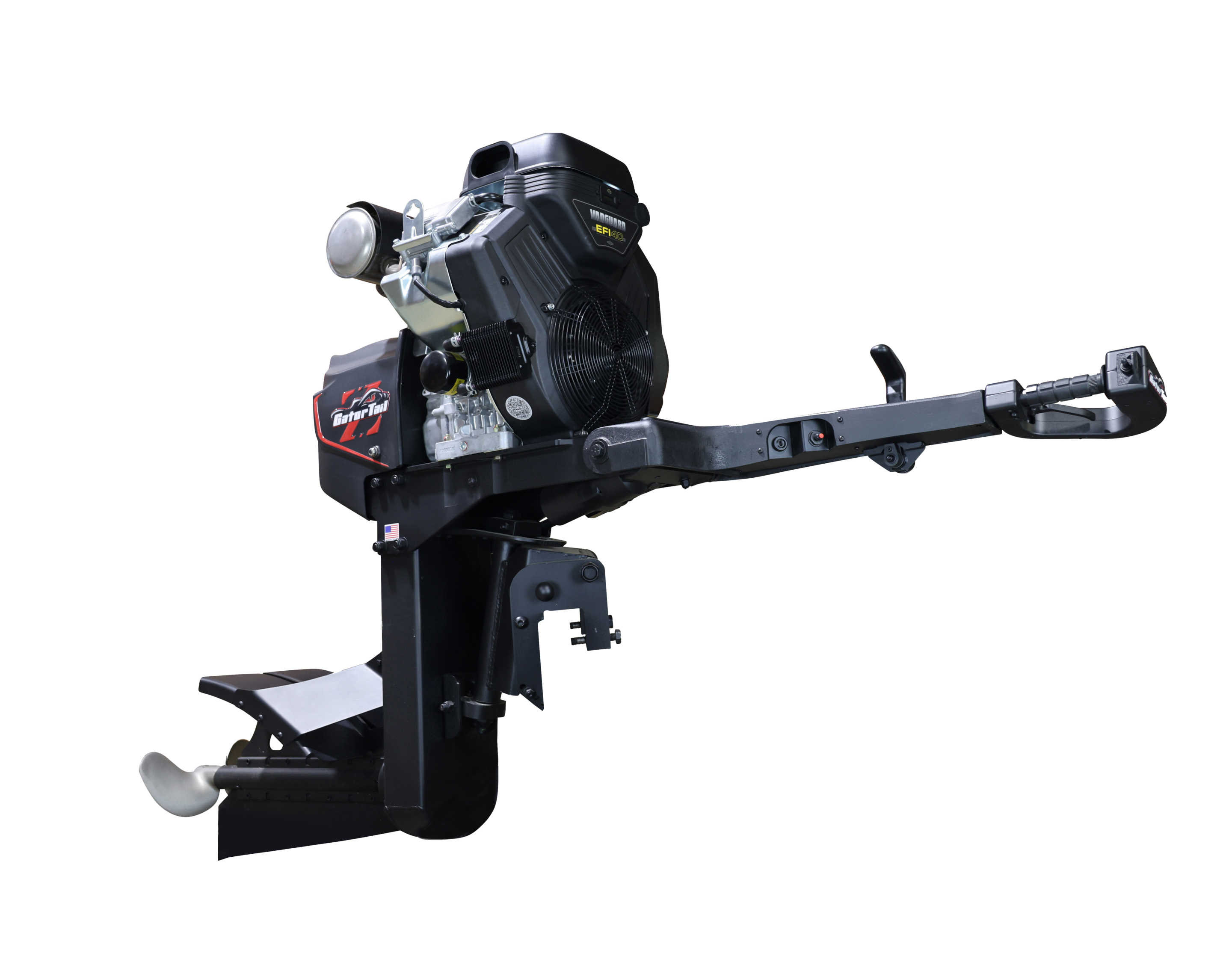

GATORTAIL 40 GTZ PICTURED 300 LBS
993ccc Big Block CDI 40HP Vanguard Marine Engine
All Vanguard engines come with a 3 year warranty.

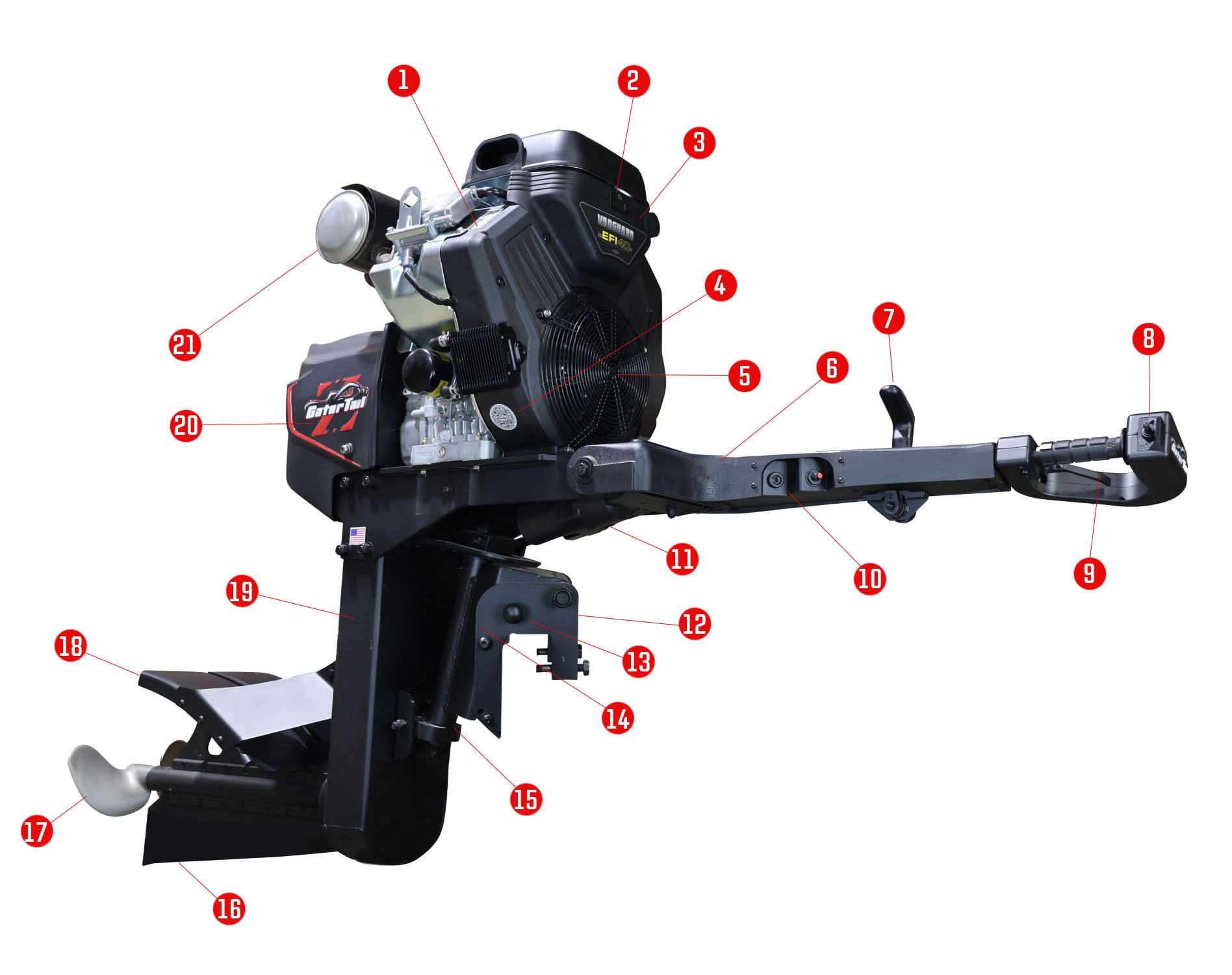

Tachometer/Hour Meter
Allows proper operation data and precise maintenance windows.
4750rpm High Rev Coils
Engine comes standard with a 4750 rpm limiter, protects against over revving.
GatorTail Scan Code
Access to maintenance information, videos, and link to order parts.
20-50amp Charging System
Allows you to run all your favorite electronic accessories.
Smooth Ride Tiller
Vibration Reducing bushing makes longer runs easy.
Forward Neutral Reverse Lever
Outboard style shifter
Waterproof Heavy Duty Trim Switch
Durable, commercial strength switch for reliable and all weather and all condition operation.
Metal Squeeze Grip
Weatherproof throttle ergonomically designed for comfortable and reliable operation and integrated into handle to prevent freezing.
Recessed Kill and Key Switch
Flush with handle to prevent accidental engine kill.
5000 lb./ft. Power Trim Actuator
Allows reliable trim performance in all conditions.
Fully Adjustable Transom Clamp
Allows each Gator-Tail engine to be custom mounted to individual hull for maximum performance.
Locking Tilt Pin
Allows engine to be tilted out the water easily for maintenance, storage or while trolling in the shallows.
Integrated Free Floating Handle with Tension Adjustment
Enhances safety and control while standing up or sitting down.
Polymer Bushings
Allows engine to turn and rotate easily for safe and comfortable operation.
Three Piece Extruded Lower Unit
Allows for easier maintenance.
Weedless Propeller
Standard on all models.
High Thrust Reverse Cavitation Plate
Maximizes thrust for reverse power and keeps mud and water splash-backs to a minimum.
3 Year Belt Warranty
Gator-Tail’s belt driven technology is proven to be reliable.
ZF Transmission
U-Drive gearbox delivers unmatched durability w/ enhanced reverse propulsion.
High Flo Stainless Steel Muffler
Extended protection in saltwater environments.
A seamless transition to hop between your bay boat or bass boat to your mudboat. The ease of operation and smooth transition will now be reflected in your GatorTail. This new technology enhances the safety, engine protection, and performance of our flagship engine.
